SIGN BOARD DRIVERS

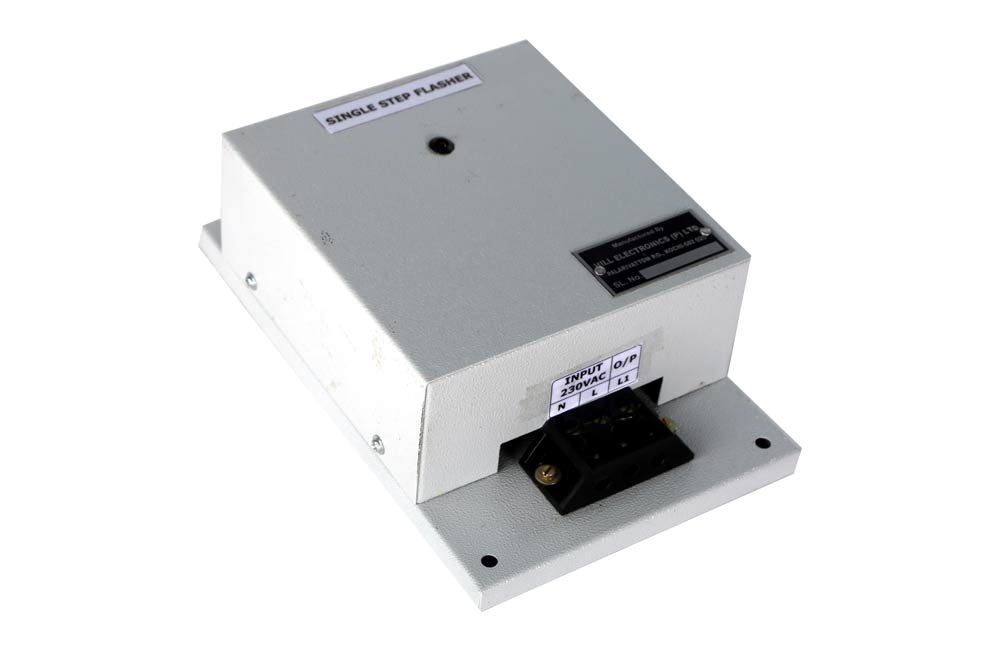

Product: NEON FLASHER & CHASER

This product is used to illuminating the display boards of shops, hotels etc.

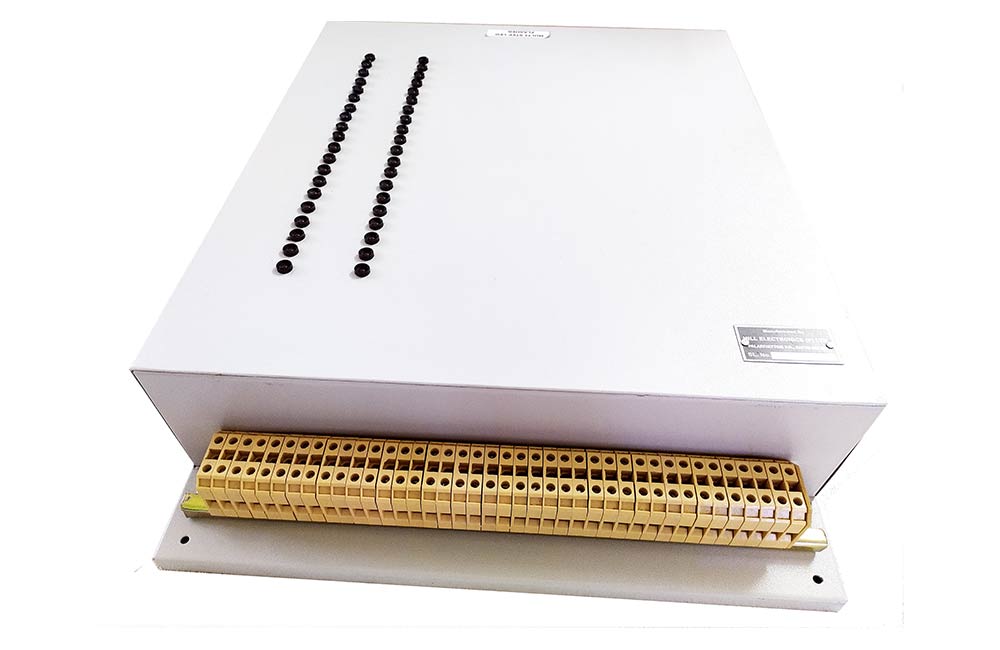

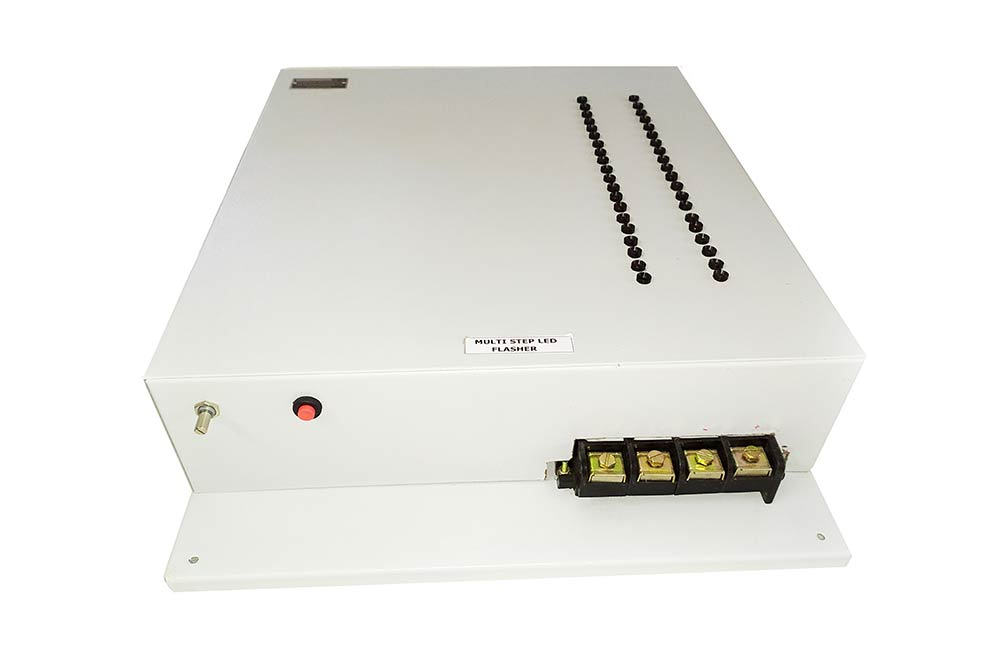

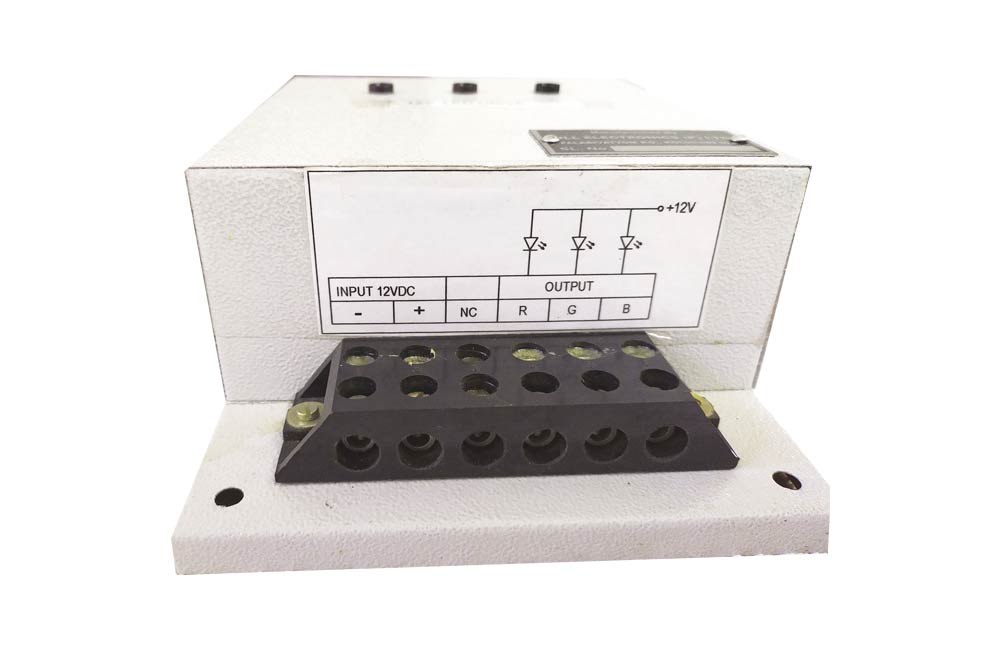

Product: LED CHASER & DIMMER

We have wide variety of LED controllers including RGB controller, multichannel chaser (48+), LED dimmer. The user can control the speed and select the pattern.

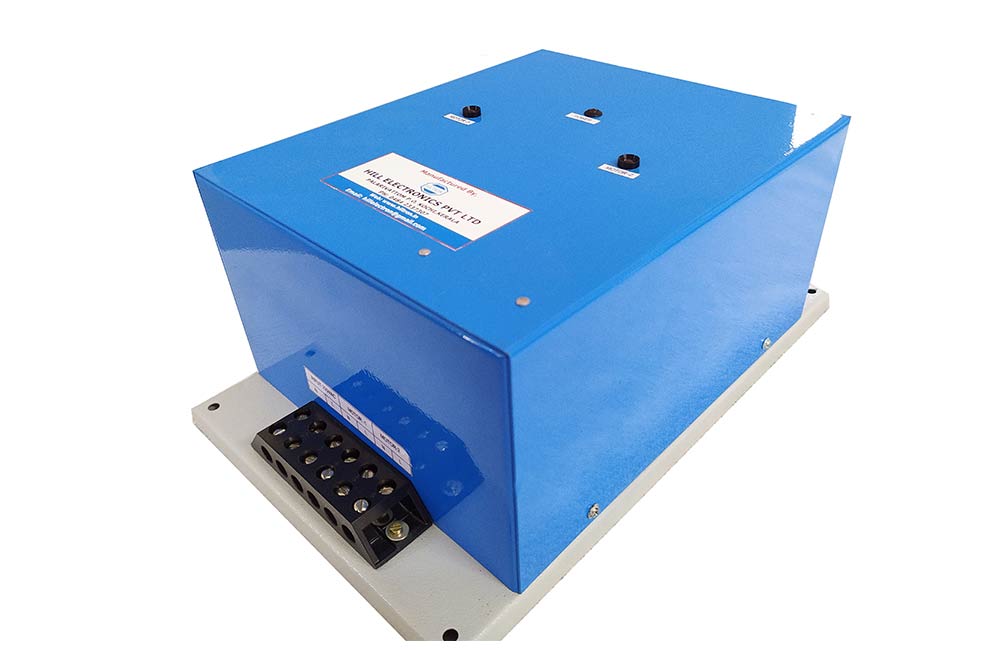

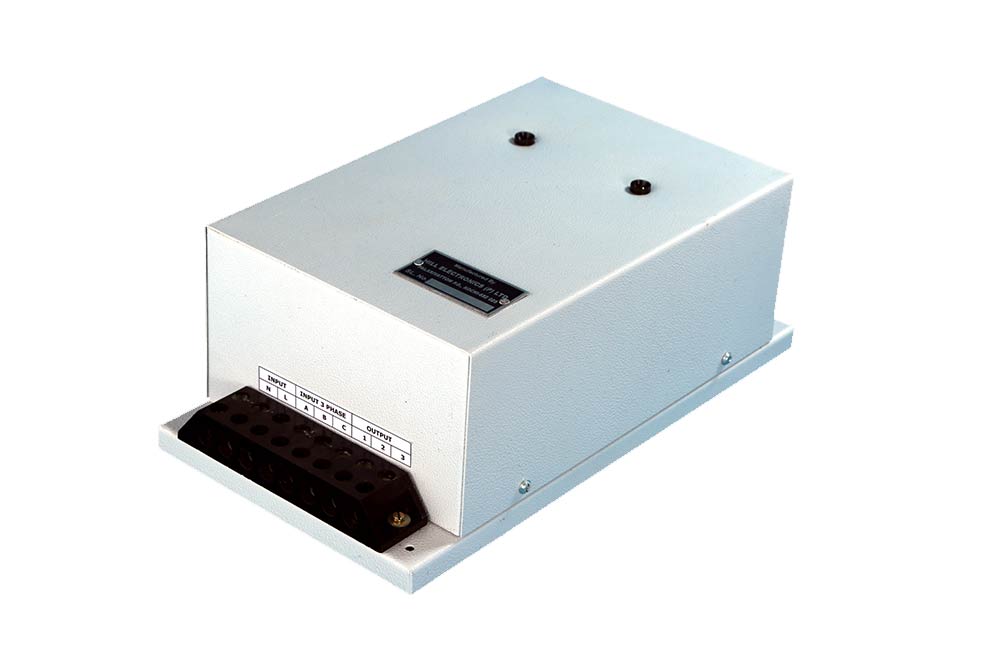

Product: POWER LAUNDRY CONTROLLER

Hiltron power laundry controller is used to control the forward and reverse rotation of the laundry motor. This device can also be attached to Hiltron Timer to set the desired washing time. Available for both single phase and 3 phase motors.

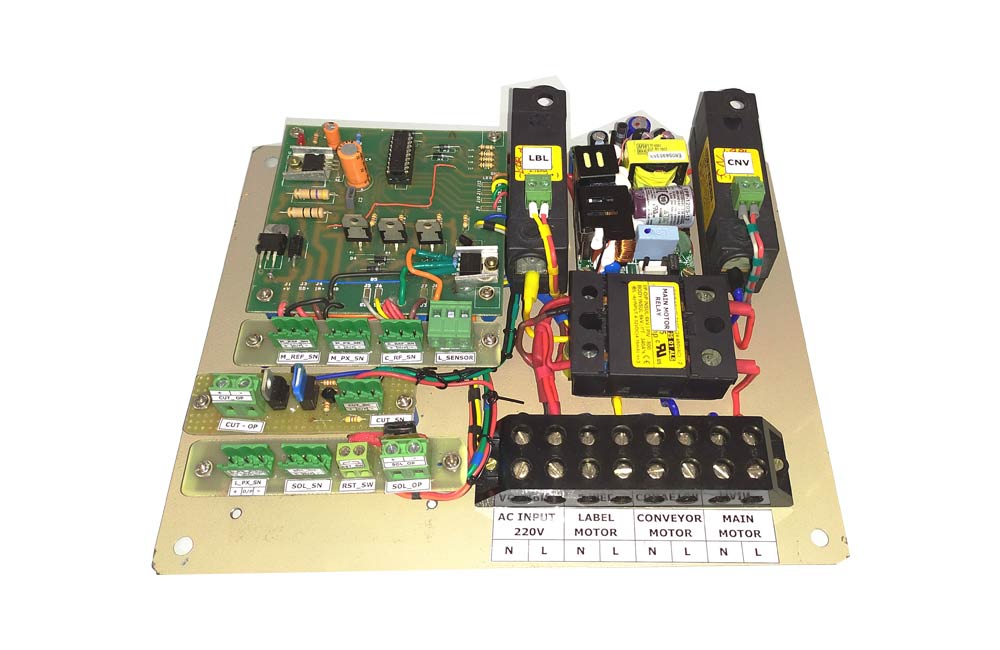

Product: LABELLING MACHINE CONTROLLER

It consists of power supply and timing circuits required for the synchronised operation of the labelling and auto cone feeding.

OTHER PRODUCTS

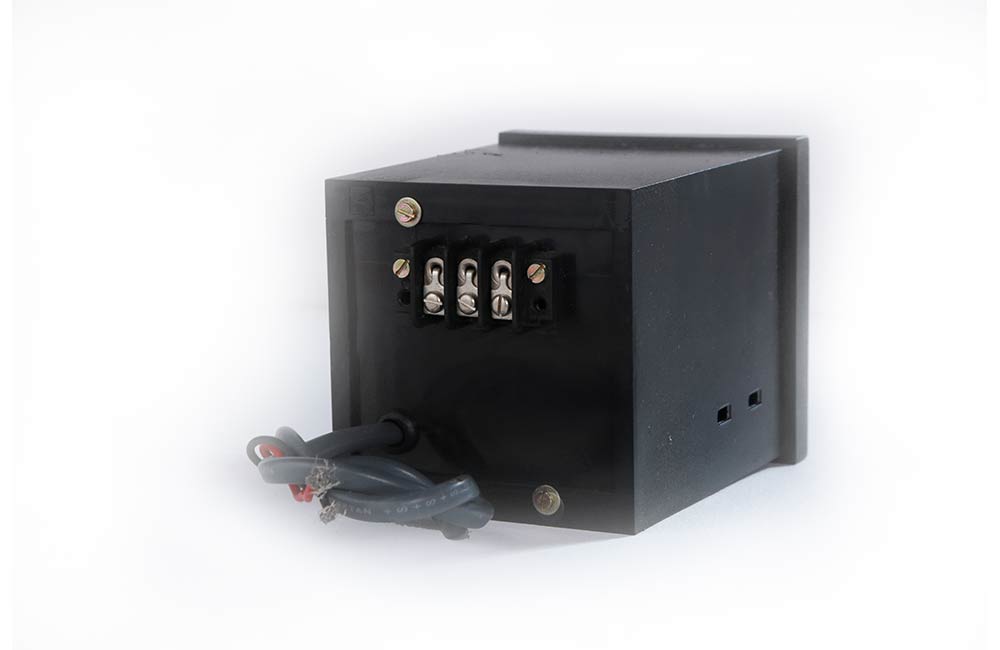

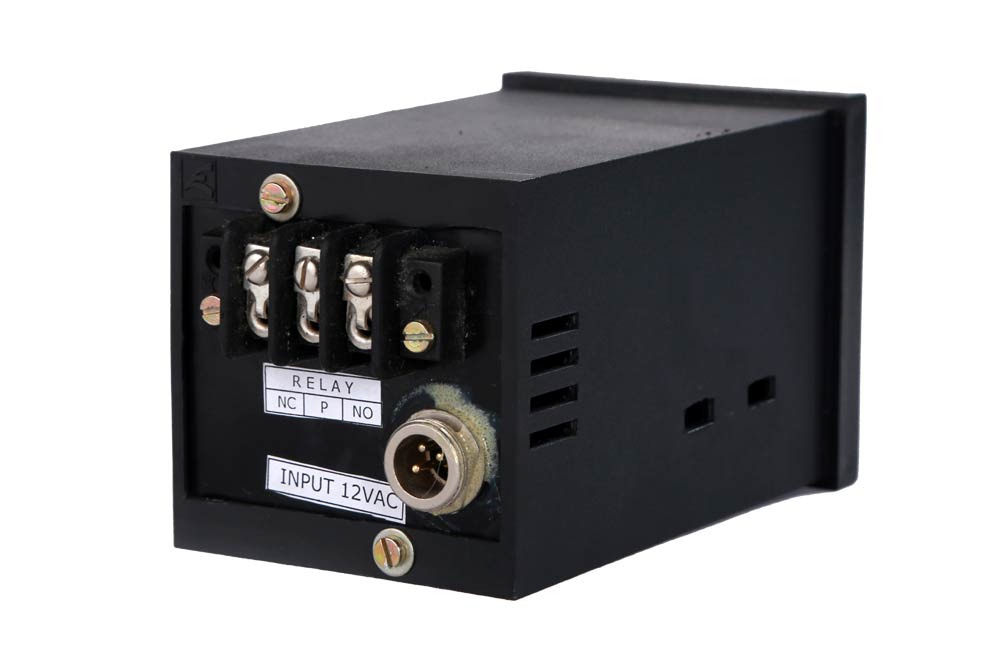

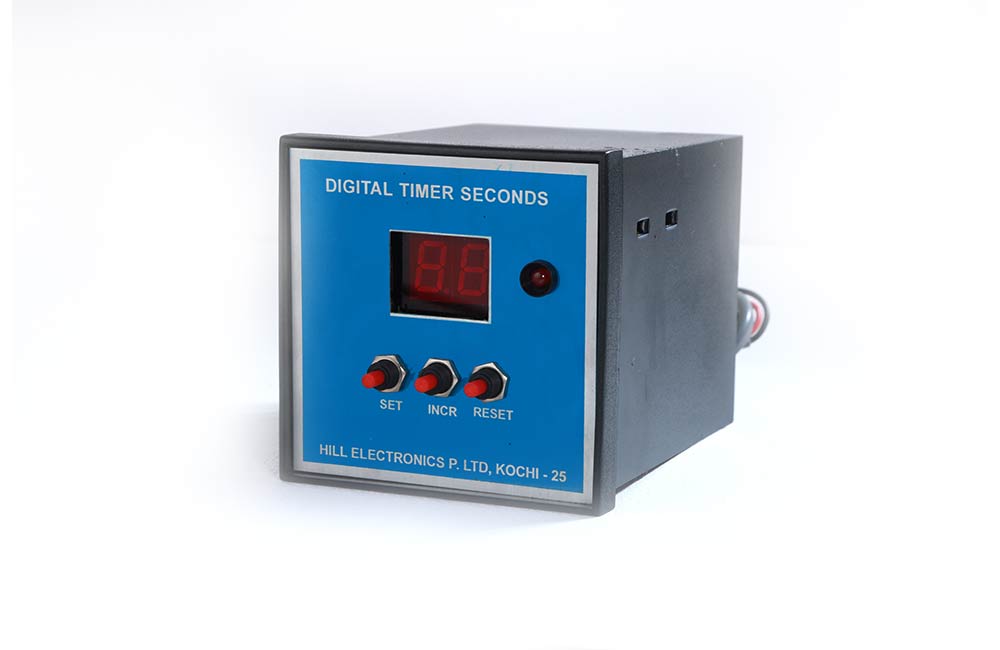

Product: PRESET DIGITAL TIMER

Hiltron preset timer is used to generate time delay. User can set up to 99 minutes/seconds delay. NC relay output.

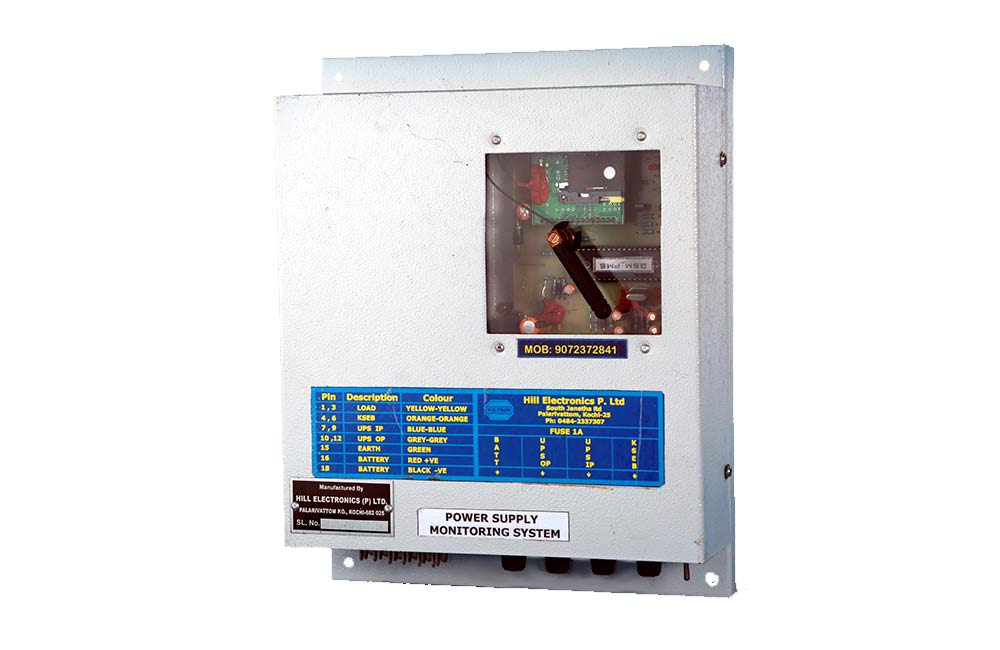

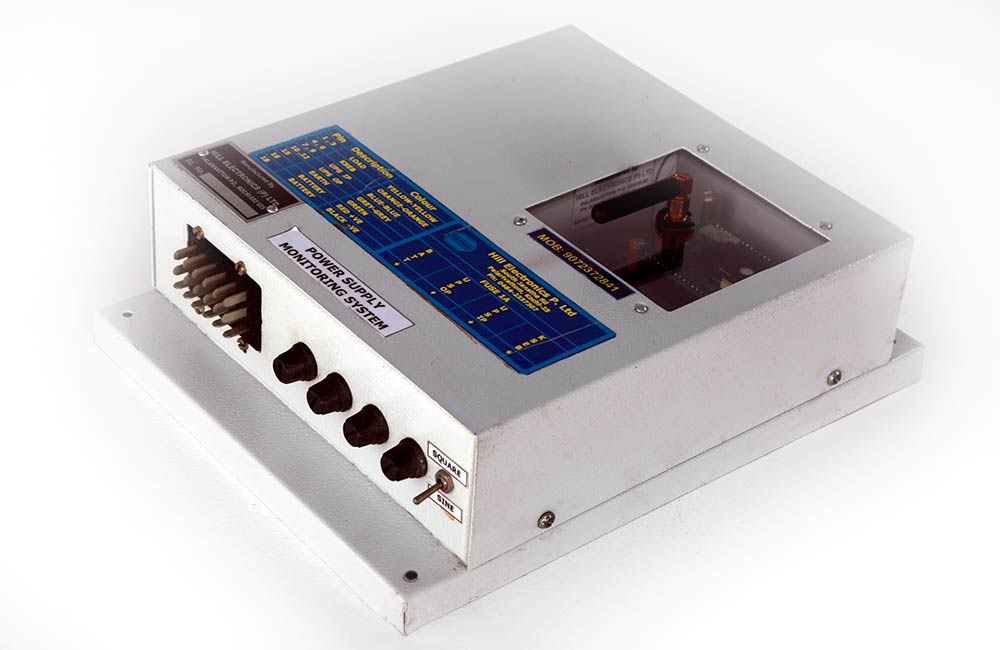

Product: GSM Mobile Based Remote Monitoring (PSMS)

PSMS is developed for Asianet cable networks. It captures electrical parameters of the UPS used in cable network. It has the facility send SMS to the operator when any type electrical fault occurs. Also it can send reply SMS showing the electrical parameters.

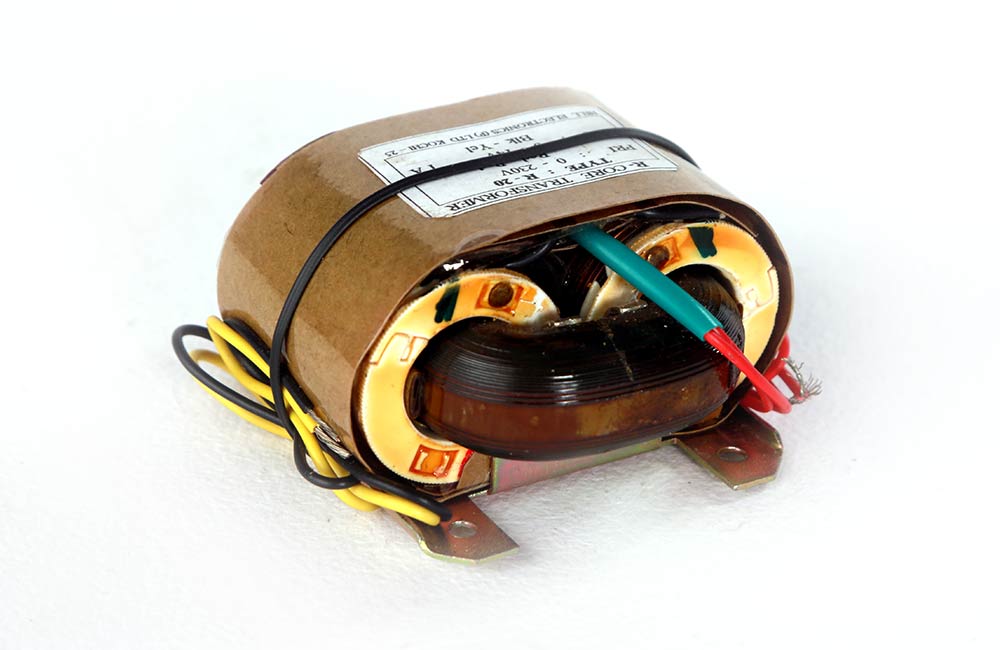

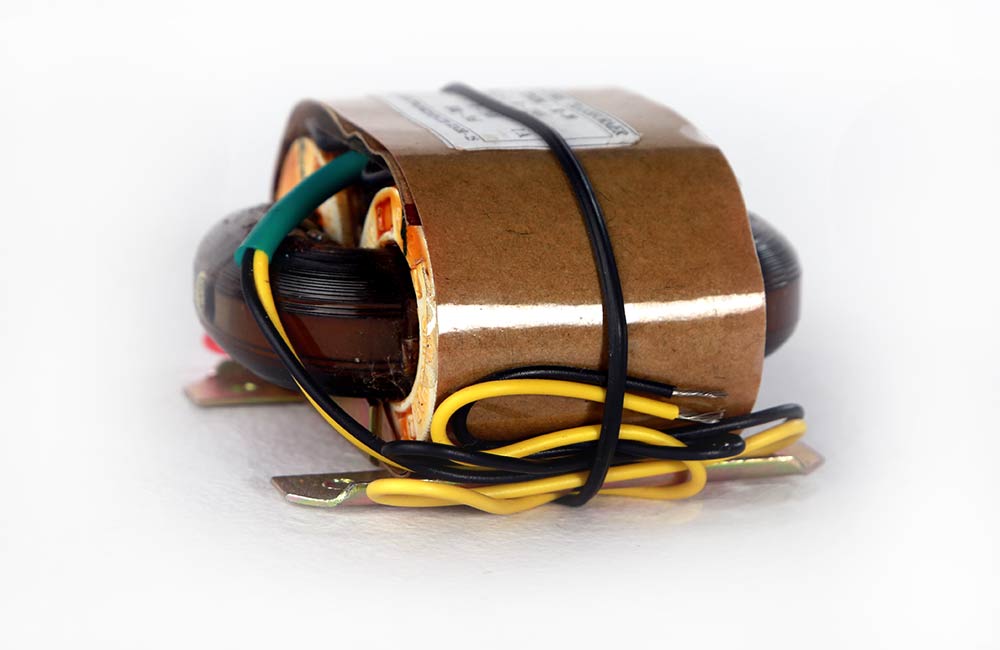

Product: R core Transformers

R-core Transformers are manufactured using unique rectangular cores with round cross section known as R-cores. The special feature of this transformer is that the core has no gaps and is continuous.

The other unique feature of R-cores is the use of Bobbins in two parts. The winding is done on special round bobbins on two parallel legs of the core. This ensures complete isolation between the two winding and satisfies safety standards. In comparison with EI Transformers of same capacity, the R-core transformer is compact (nearly 40% smaller) and has a low temperature elevation. Leakage flux of the R-core transformer is about 1/10th of conventional transformers which permits the equipment manufacturer to place the transformer close to critical electronic components. The balanced winding & low flux leakage  ensures low noise of the transformers. This makes R-Core transformers suitable for use in noise sensitive equipments.

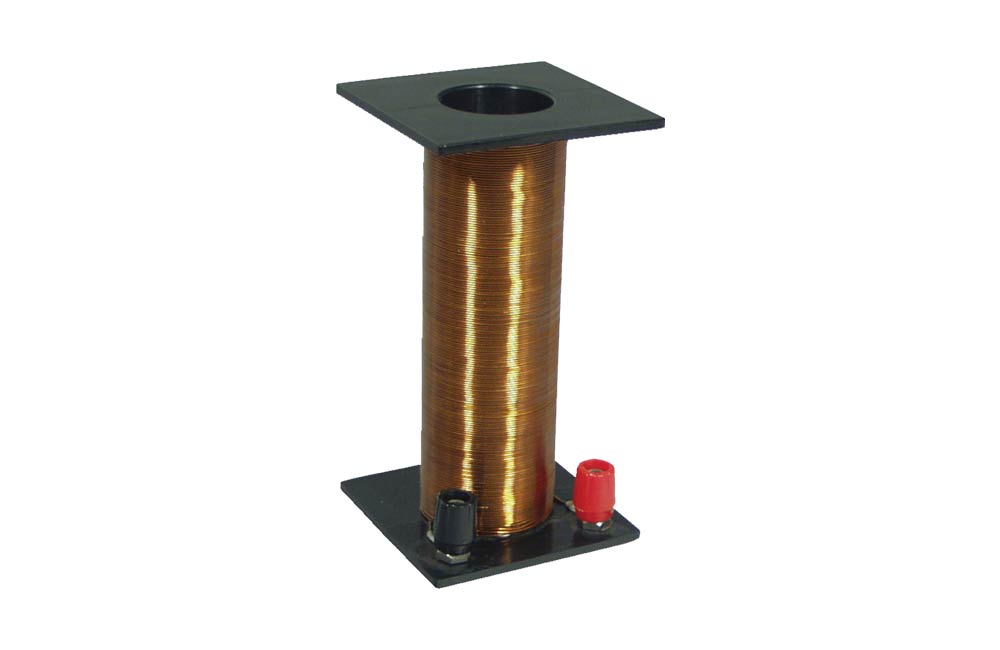

Product: Custom Based Special Winding

We have facility to do custom coil winding such as Ring type, Faraday Modulator etc.

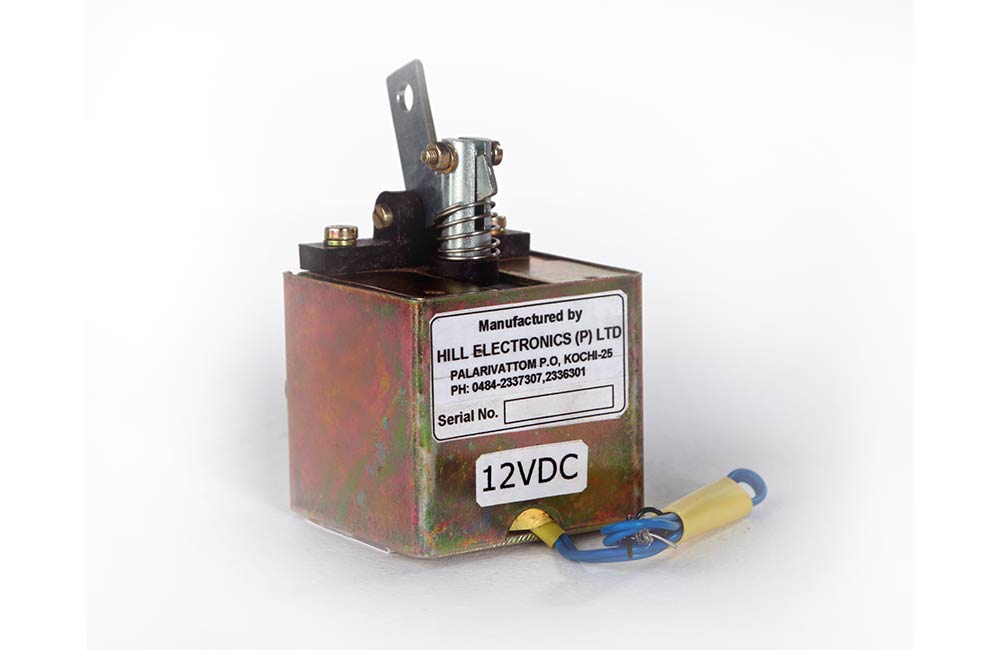

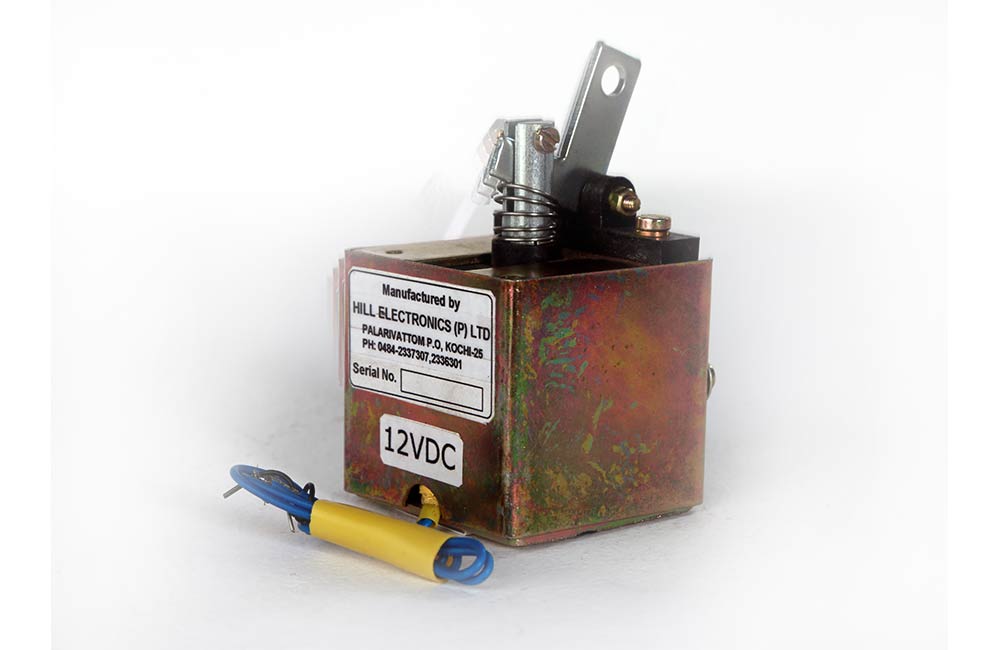

Product: DC Solenoid Coils

DC 12 V Solenoid electromagnet, 10mm, open frame type, linear motion, plunger spring return type. Applications include motor breaking system, auto door lock etc.

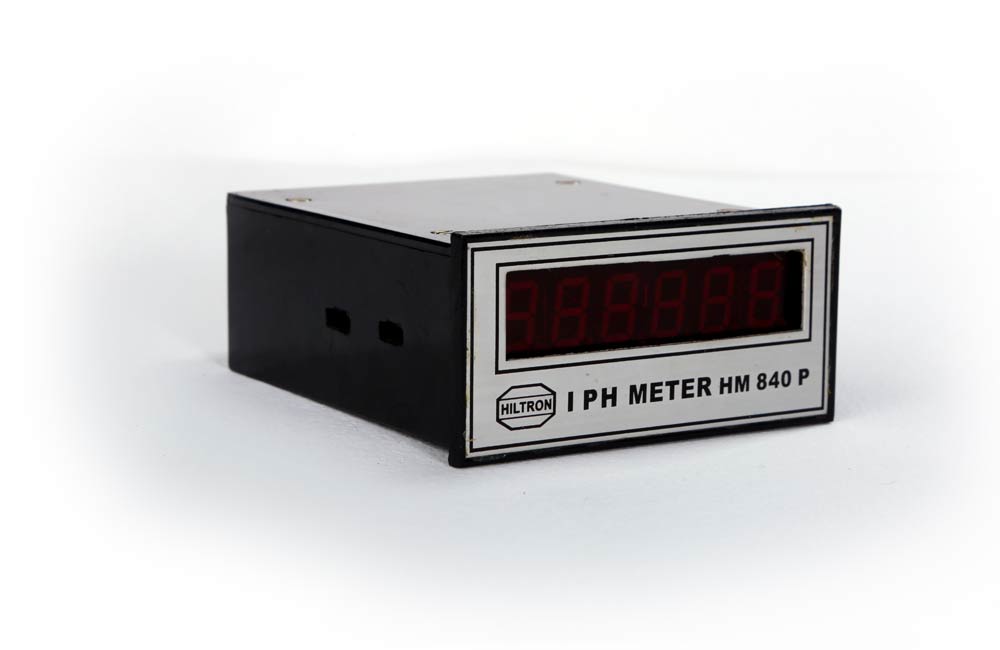

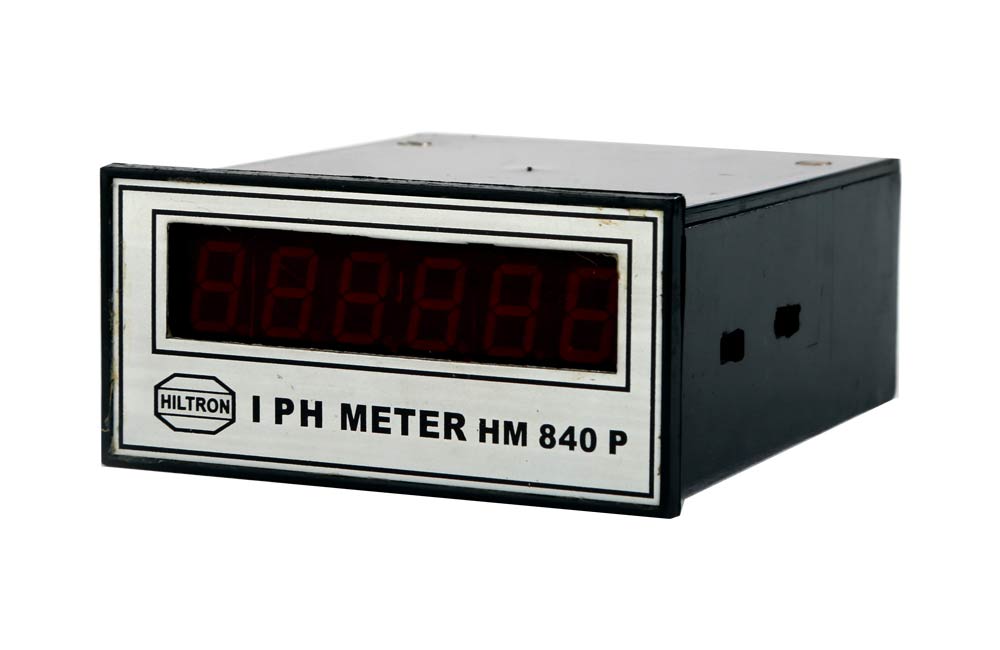

Product: Digital Speed Display (Printing Machinery) Hmt

Used to monitor the hourly production in printing machine, with 5 digit display.

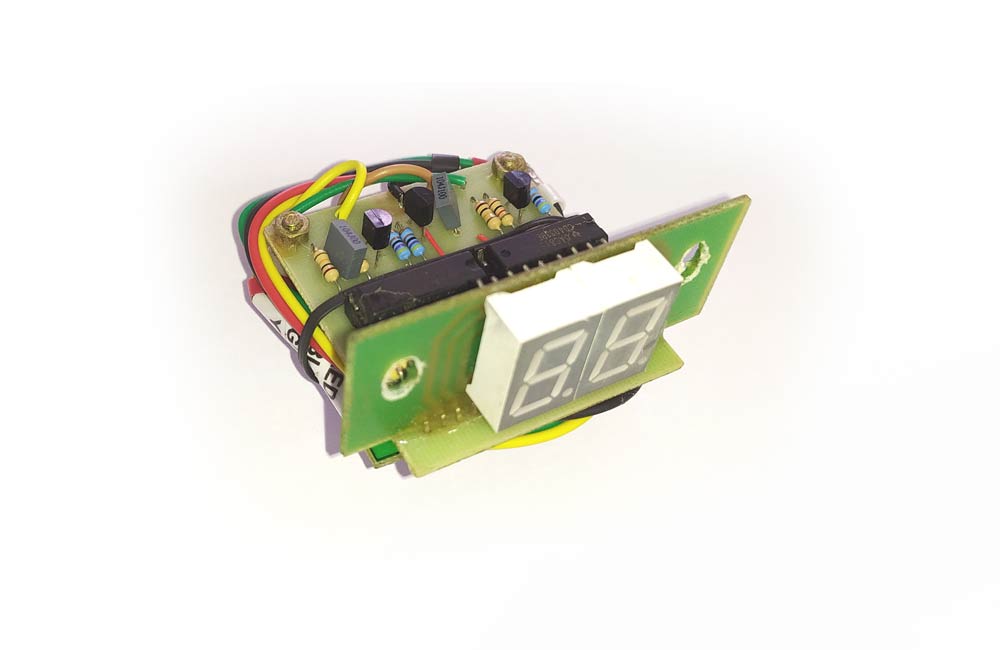

Product: Tool Display Unit (Printing Machinery) Hmt

It is a break board that contains 2 digit display and 5V regulator, used to display production count.

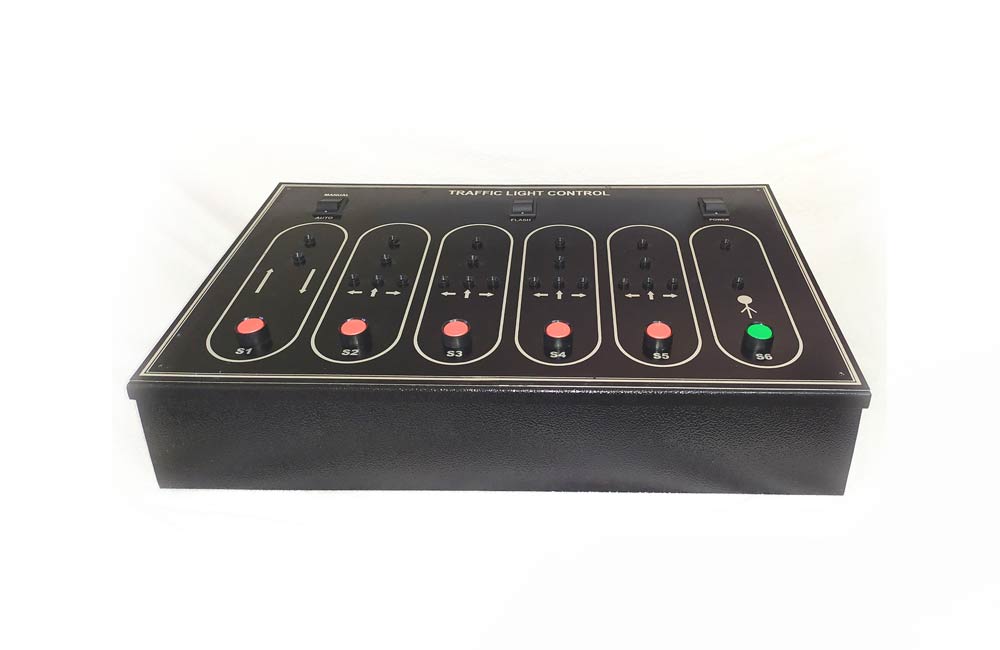

Product: Traffic Light Controller System

Hiltron traffic control system is popular in India. Its silent features include,

• Intelligent signal control for junctions up to 5 roads.

• Auto and manual control

• Inbuilt timer for turn ON blinking in night time.

• Can be remotely control.

• Prerecorded traffic rule announcement.

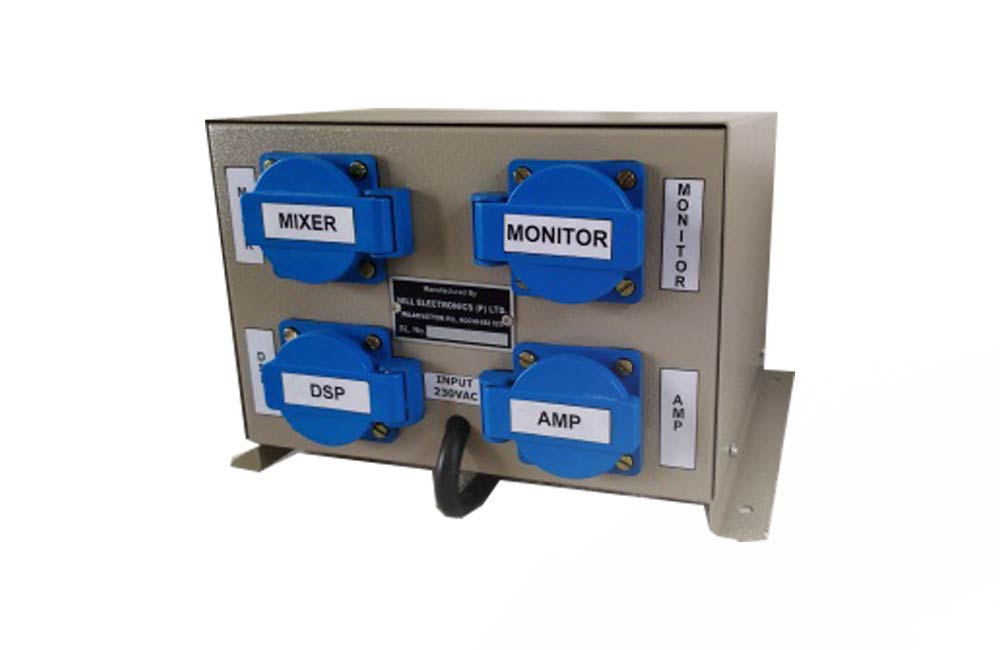

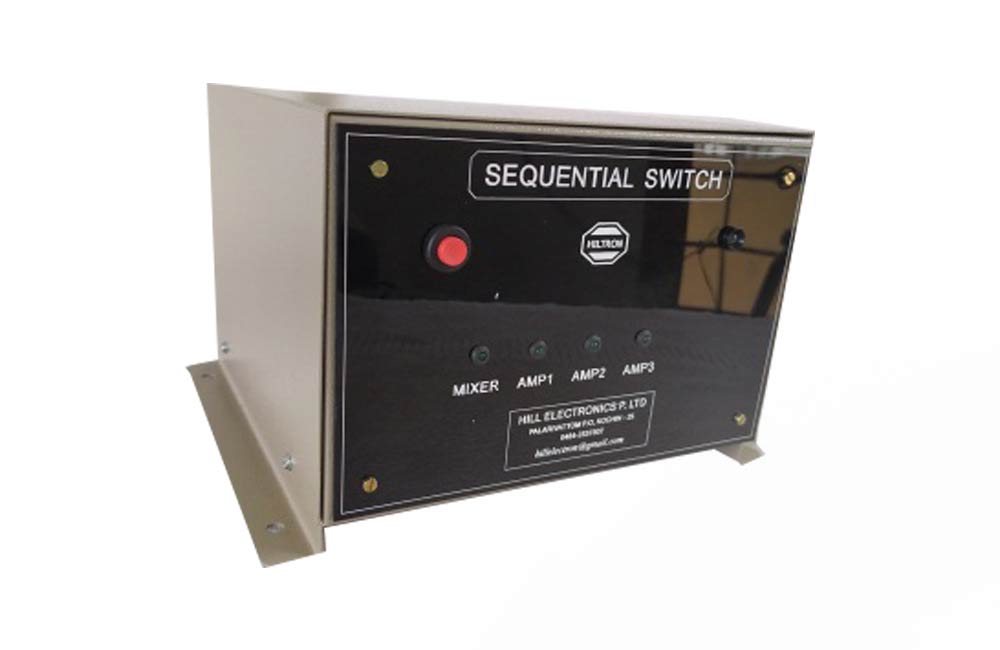

Product: Sequential Switch For Sound System

Sequential Switch is used in public addressing / Audio systems, to protect the speaker from Power ON Spikes. It sequentially controls the Power On timings of MIXER, DSP, MONITOR and AMPLIFIERS. Power OFF timings are just opposite to that of Power ON timings.
